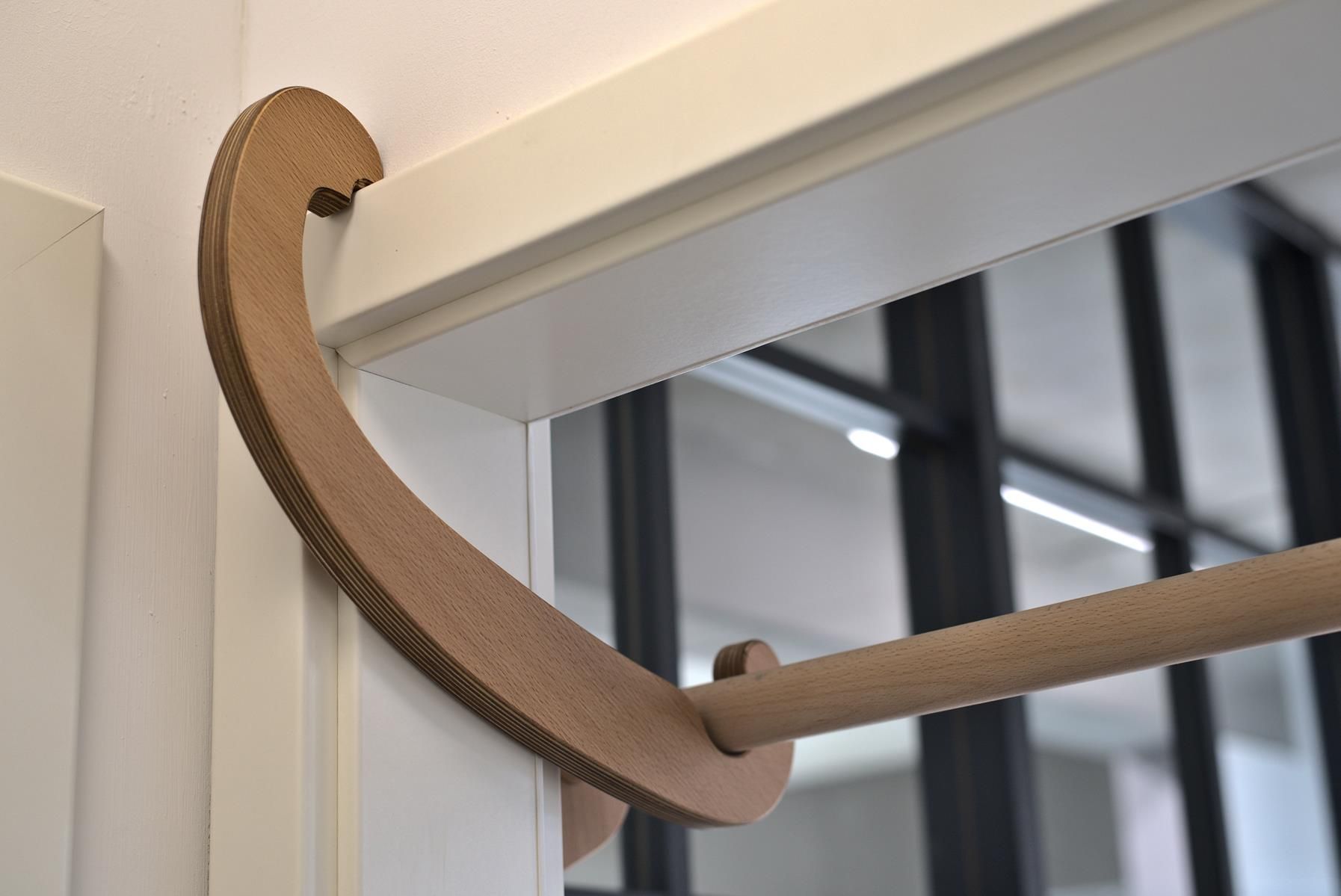

Fixing Hooks for Pull Up Bar

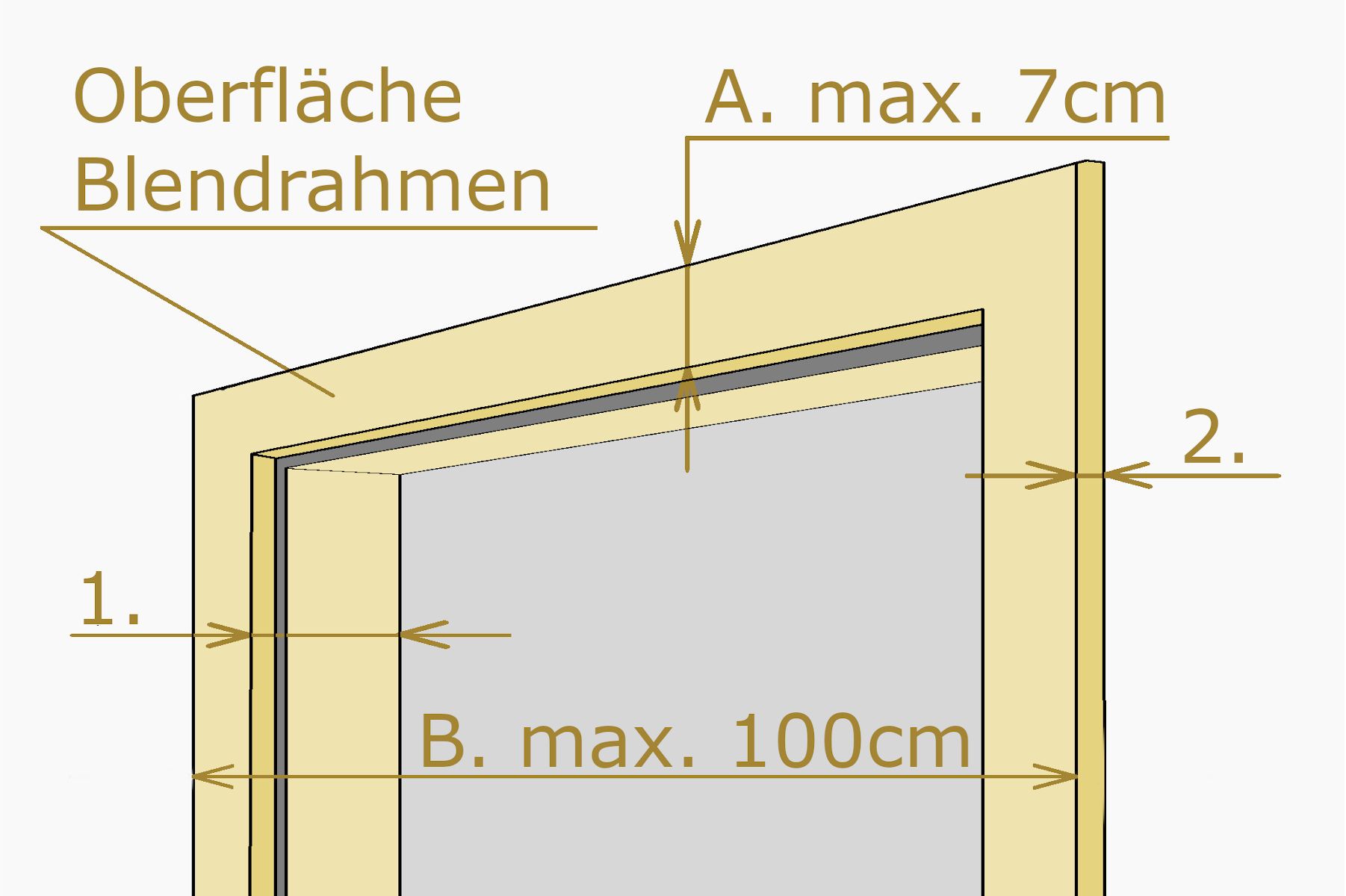

Determining the Correct Size (see Image No. 2)

1. Measure the distance from the surface of the frame to the surface of the frame in the other room at the top of the door.

2. Subtract the distance from the wall where the pull-up bar will be located to the surface of the frame. This is usually about 1.5 cm.

Example calculation:

= 1. - 2.
= Distance frame - Distance wall-frame
= 16.5 cm – 1.5 cm
= 15 cm

This results in size 1 (13-18 cm)

Table

Minimum Dimensions

A.: Measure the height of the frame. This should not exceed 7 cm.

B.: The maximum width of the frame should not exceed 100 cm.
